VISUSCREEN 100 - Acuity Chart
The acuity chart systems VISUSCREEN® 100/500 and the digital phoropter VISUPHOR®500 from ZEISS offer refraction specialists a sophisticated, modular solution, combining comfort and convenience with speed and efficiency.

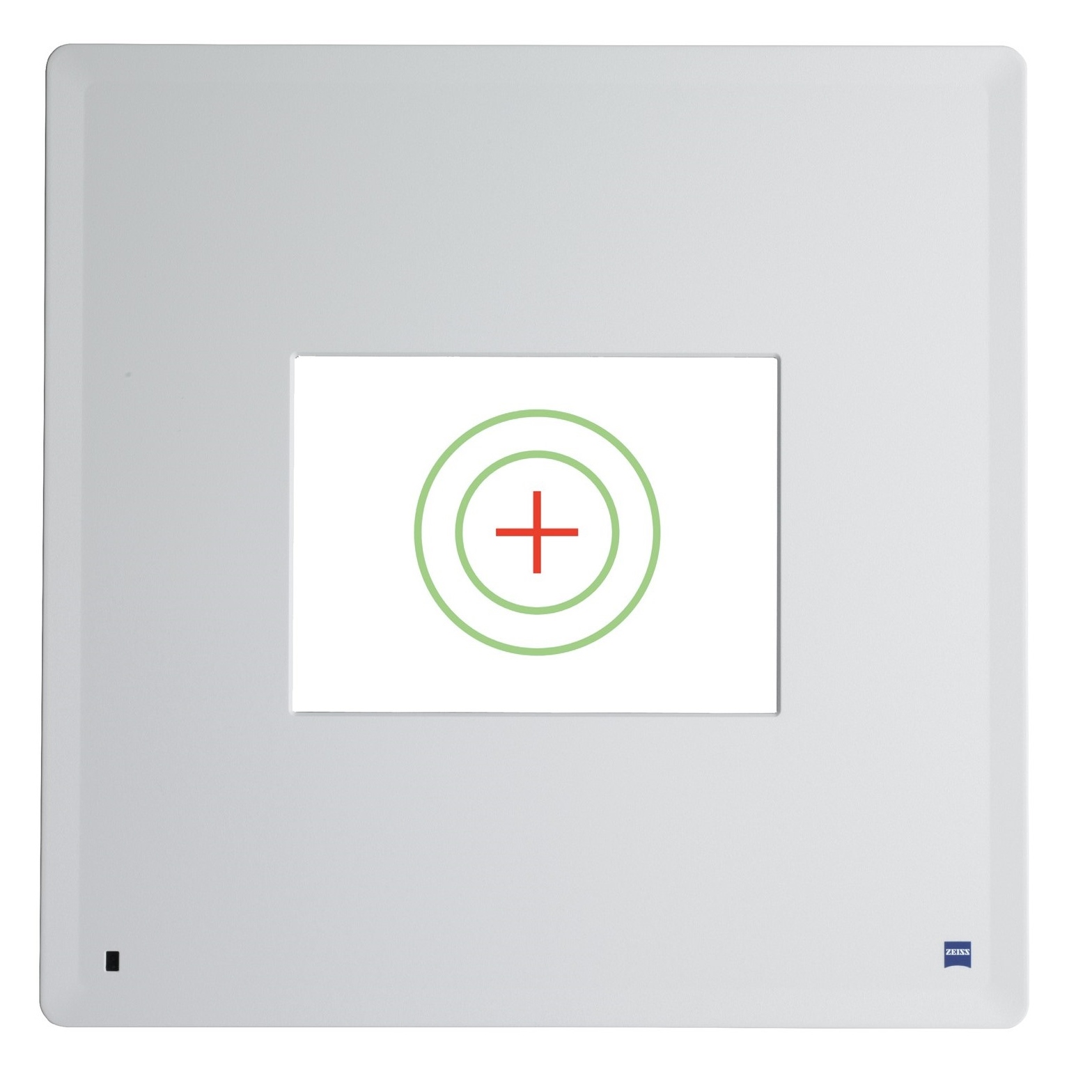

The ZEISS VISUSCREEN 100 LCD acuity chart system is available with red/green separation. The acuity chart system features over 20 tests for accurately assessing monocular and binocular vision, and can also be operated as stand-alone device if you prefer to work with a trial lens set or a manual phoropter.
Your benefits at a glance
> Acuity charts and phoropter allow easy, intuitive operation via touch-screen interface
> Preconfigured workflows let you get right to work, saving you time preparing refraction tests
Fast and smooth lens exchanges support efficient vision optimization and final prescription in real time.
Simple touch screen control
The clearly structured user interface makes working with the ZEISS VISUSCREEN/VISUPHOR very easy. With the fully integrated GUI, both the phoropter and acuity screen can be controlled as one subjective refraction unit. Even single-handedly, with the optional, medical grade panel PC or an iPad.
The ZEISS VISUPHOR 500 enables preconfigured workflows. Thereby, settings for each test are optimally adjusted, fully automatically, making standard refraction tests simple and fast. Settings and workflows can also be individually configured in the freestyle mode.
Choice of acuity chart systems
The ZEISS VISUPHOR 500 digital phoropter is an accessory for the ZEISS VISUSCREEN 100/500 LCD acuity chart system. It is available either with red/ green separation or with the renowned Polatest® technology from ZEISS. The acuity chart system features over 20 tests for accurately assessing monocular and binocular vision, and can also be operated as stand-alone device if you prefer to work with a trial lens set or a manual phoropter.
iPad and iPad Air are trademarks of Apple Inc., registered in the U.S. and other countries. iOS is a trademark of Cisco, registered in the U.S. and other countries.
- Technical Data
ZEISS VISUSCREEN 100 Technical data Test area size (W x H) 299.5 x 223.5 mm Testing distance 1 to 8 m Line voltage 100 – 120 / 200 – 240 V AC
± 10 %, 50…60 Hz
Power consumption 50 VA Dimensions (W x H x D ) 594 x 594 x 110 mm Weight 16 kg Interfaces 1 x USB / WLAN System requirements iPad 3, 4 or Air with iOS 7 or later
- Standard Delivery Package
Der Standardlieferumfang für den ZEISS VISUSCREEN 100 beinhaltet:
1 VISUSCREEN 100 1 Stromversorgungskabel
- Further Information
Get to know VISUSCREEN 100/500 and VISUPHOR 500 from ZEISS:
