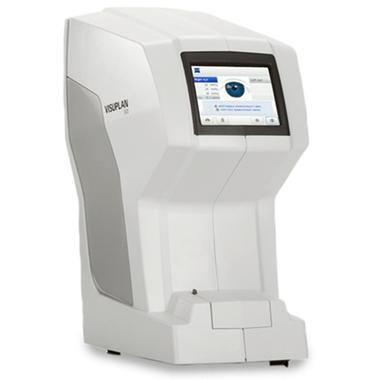

ZEISS VISUPLAN 500 - Non-Contact-Tonometer product photo
  • ZEISS VISUPLAN 500 - Non-Contact-Tonometer product photo Details1 2XS
  • ZEISS VISUPLAN 500 - Non-Contact-Tonometer product photo Side View 2XS
  • ZEISS VISUPLAN 500 - Non-Contact-Tonometer product photo Front View 2XS
  • ZEISS VISUPLAN 500 - Non-Contact-Tonometer product photo Details2 2XS

ZEISS VISUPLAN 500 - Non-Contact-Tonometer

Product ID: 000000-2056-506

The measurement of intraocular pressure is part of every professional glaucoma screening. The VISUPLAN® 500 from ZEISS makes this examination very easy and, complementing the Goldmann tonometry, does not require contact or anesthesia. The measurement is made with a soft puff of air and can be administered by your practice team.

Your benefits at a glance

> Your staff can take the measurement.
> You identify patients at risk quickly and reliably.
> You receive accurate measuring results regardless of the user.
> You provide fast and comfortable IOP screening for your patients.
RM 42,144.00  Excl. GST
MeditecAG:/Ophthalmology/VISUPLAN 500_Details 2.jpg
MeditecAG:/Ophthalmology/VISUPLAN 500_Details 1.jpg

Intuitive operation

The measurement process runs automatically. You start directly via the touchscreen and choose from single or multiple measurements. You also have the option of initiating a test puff to prepare your patients for the examination. The results appear directly on the monitor. Alternatively, you can print out the results with the integrated thermal printer, or export via the serial interface.

Stable headrest and reliable LED fixation

The headrest allowing for simple positioning of the patient. The integrated LEDs help patients intuitively fixate, enabling a fast and reliable measurement. You move the headrest to measure the second eye.

Automatic positioning and measurement

Thanks to the auto-tracking of the probe, it is very easy to find the right position and initiate the measurement.

Soft puff of air for more comfort

The ZEISS VISUPLAN 500 makes the measurement of intraocular pressure gentler and more comfortable for your patients. The non-contact measurement uses one or more puffs of air. Patients at risk of glaucoma can be quickly and reliably identified.

Technical Data
  Technical data
Dimensions (W x D x H) 270 x 359 x 501 mm
Weight 10.9 kg
Power frequency 50/60 Hz
Power consumption 60-85 VA
Voltage 100-240 V
Protection class 1
Instrument type B (DIN EN 60601-1)
Measuring range 7 to 60 mmHg
Monitor 5.7" LCD TFT
Printer Thermal printer
Printer paper Thermal paper (width: 57 mm, roll diameter: 50 mm)
Standard Delivery Package
The standard delivery package for the ZEISS VISUPLAN 500 includes:
1 power cord
1 roll of thermal paper
1 dust cover
spare fuses
