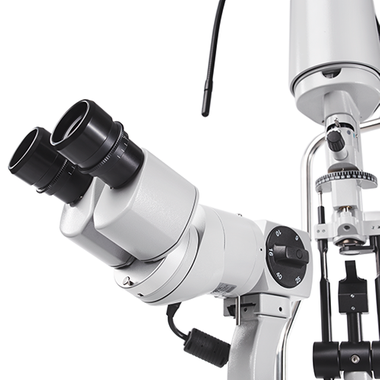

ZEISS SL 220 for Instrument Table (3x Magnification)
Powerful flexibility
Complementing the ZEISS slit lamp portfolio, the ZEISS SL 220 delivers flexible performance throughout the day. Featuring the popular tower concept with LED illumination, it is a solid investment for years of use. Superb optical and mechanical qualities that one has come to expect from ZEISS, convenient operation as well as detailed, contrast-rich images support fast, precise eye examinations. Wide-ranging accessories allow for individual setup to suit your preferences.
Important note: The pictured slit lamp cam is not included in the standard delivery package.
- Description
-
Optical brilliance
> Latest LED technology for instant, stable illumination
> 22 mm stereo base and large field with fully rotatable 12 mm slit for superb view of the entire anterior segment
> High-contrast, high-resolution slit images of exceptional detail for fast, reliable examinations
Operational convenience
> Popular user interface with LED illumination for convenient, intuitive operation
> Joystick, quick action brake and easy grip controls for precise slit adjustments
> Choice of 3 or 5 magnification steps for observation from overview to detail
> Optional parallel or convergent tube to support your workflow preferences
Versatile excellence
> Powerful versatility for comprehensive slit lamp examinations
> Broad assortment of accessories* – from ergonomics to tonometry – for expanded applications and excellent patient care
> ZEISS SL Imaging Module* to conveniently document clinical findings
*Option - Technical Data
-
Important notice: Please refer to the product brochures available in the tab “More information” to view the complete list of technical specifications, especially regarding the SL Imaging Module and its minimal requirements for computer hardware.ZEISS SL 220 Technical data Magnification 5-step: 6x, 10x, 16x, 25x, 40x
3-step: 10x, 16x, 25xField of view diameter 5-step magnification: 41 … 5.7 mm
3-step magnification: 26.5 … 8.7 mmEyepiece magnification 12.5x, compensation of ametropia ±8 D Width of slit image Continuous from 0 to 12 mm Length of slit image Variable 0.2 / 1 / 3 / 5 / 9 / 12 mm, continuous 1 to 12 mm with scale indication Rotation of slit image Continuous ±90° Decentration of slit image ±4° horizontally, fixed at 0° Swivel range of slit projector 180°, scale for angular difference; click stops at -10° / 0° / +10° Angle of incidence Variable steps of 0° / 5°/ 10°/ 15°/ 20° tiltable Filters Blue, green (red-free), grey, red, swing-in; diffusing screen, swing-in; barrier yellow, swing-in Free working distance
exit prism/patient’s eye88 mm / 3.46 in Travel of instrument base 30 mm (vertical) / 1.2 in (vertical)
110 mm (lateral) / 4.3 in (lateral)
90 mm (axial) / 3.5 in (axial)Vertical travel of headrest 59 mm / 2.3 in Projection illumination 15 V, LED Brightness Continuously adjustable Rated voltage 100 … 240 V ±10%, 50 / 60 Hz Weight 12.5 kg (27.55 lbs)(instrument including headrest) Dimensions of basic instrument
(W x H x D)300 mm x 705 (±15) mm x 355 mm
11.8 in x 27.7 in (±0.6 in) x 13.9 in - Standard Delivery Package
-
