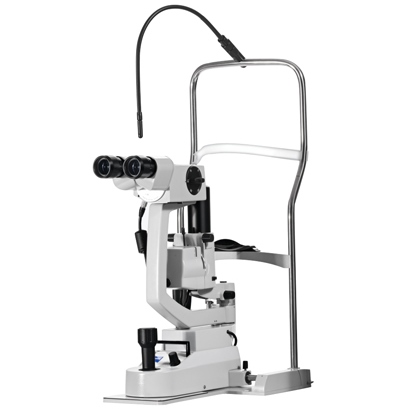

ZEISS SL 120 for Instrument Table, including SL Imaging Module
Operational convenience as well as outstanding optical and mechanical performance make the ZEISS SL 120 slit lamp a powerful all-rounder with great application flexibility. This highly durable and reliable instrument provides detailed, contrast-rich images for accurate and efficient eye examination – all day, every day. It can be easily upgraded to support additional applications.
Important note: The pictured fixation light is not included in the standard delivery package.
- Description
-
Outstanding performance
> Excellent optical transmission with high-resolution, high-contrast images for all eye examinations
> Large 14 mm illuminated field for observation of the entire anterior segment
> Stereo microscope with 5 magnification steps for convenient observation from overview to detail
> Highly durable for reliable daily use over many years
Excellent operation and flexibility
> Single-handed operation and ergonomic design support a comfortable body posture throughout the procedure
> Intuitive, precise joystick operation, quick action brake and easy-grip controls
> Choice of parallel or convergent tube
> Tiltable prism head* to reduce reflections during contact lens examinationsAdditional applications
> SL Imaging Module for convenient documentation of clinical findings and patient consultation
> Applanation tonometer* (two versions: AT 020 & AT 030) for precise intraocular pressure measurement
> 10x eyepiece* for easy assessment of clinical findings such as length and angle measurement
Convenient imaging
The SL 120 features the SL Imaging Module, enabling image and video recording of all examinations – whether for documentation, patient consultation or presentations. The SL cam 5.0, a fully integrated, highly compact 5-megapixel camera, and the SL imaging software, combine forces to deliver high-resolution images and videos. User-specific capture settings and image review functionalities promote a smooth workflow. The SL Imaging Module is also available as an easy upgrade kit for existing SL 120 slit lamps.* Option
- Technical Data
-
* OptionZEISS SL 120 Technical data Magnification 5x, 8x, 12x, 20x, 32x with 10x eyepieces
6x, 10x, 16x, 25x, 40x with 12.5x eyepiecesField of view diameter 40 … 6 mm with 10x eyepieces
31 … 5 mm with 12.5x eyepiecesEyepiece magnification Optionally 10x or 12.5x super high-eyepoint eyepieces, compensation of ametropia ±8 D Width of slit image Continuous from 0 to 14 mm Length of slit image In steps 0.3 / 3.5 / 8 / 14 mm; continuous 1 … 6 mm Rotation of slit image Continuous ±90° Decentration of slit image ±4° horizontally, click stop at 0° Swivel range of slit projector 180°, scale for angular difference; click stops at -10° / 0° / +10° Angle of incidence 0°; 0° … 20° tiltable with tiltable prism head* Filters Blue, green (red-free), swing-in; heat-reflecting filter, permanently integrated; diffusing screen, swing-in Free working distance
exit prism/patient’s eye65 mm / 2.5 in Travel of instrument base 30 mm (vertical) / 1.2 in (vertical)
110 mm (lateral) / 4.3 in (lateral)
90 mm (axial) / 3.5 in (axial)Vertical travel of headrest 59 mm / 2.3 in Projection illumination 6 V / 20 W halogen lamp Brightness Continuously adjustable Rated voltage 100 … 240 V ±10%, self-sensing, 50 / 60 Hz Weight Basic instrument 9.75 kg (21.49 lbs); headrest 1.25 kg (2.76 lbs) Dimensions of basic instrument
(W x H x D)300 mm x 430 mm x 355 mm
11.8 in x 16.9 in x 13.9 in
Important notice: Please refer to the product brochures available in the tab “More information” to view the complete list of technical specifications, especially regarding the SL Imaging Module and its minimal requirements for computer hardware. - Standard Delivery Package
-
