  5. VISUPHOR 500 - Digital Phoropter

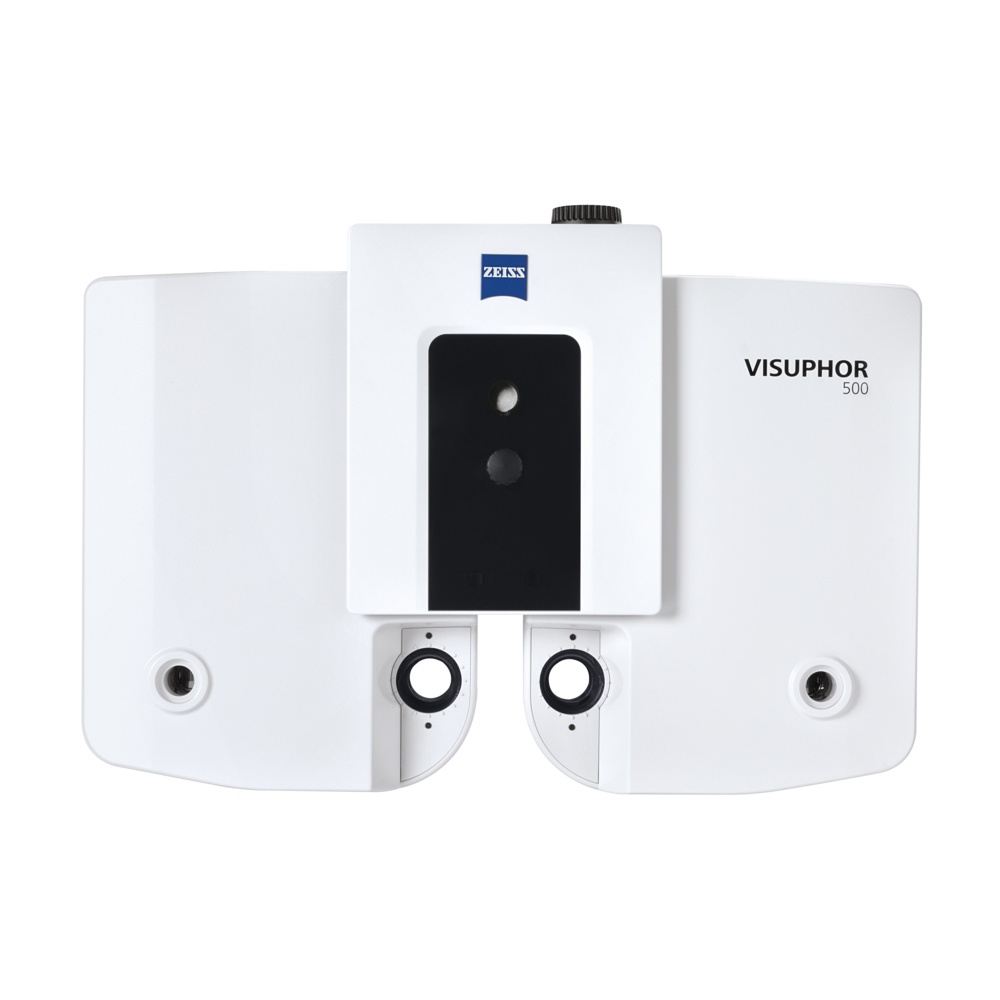

VISUPHOR 500 - Digital Phoropter product photo

VISUPHOR 500 - Digital Phoropter

Product ID: 000000-2144-321_new

Skillful determination of best-corrected visual acuity can be time-consuming, requiring operator experience and various fine adjustments. It is well worth the effort when the result is perfect vision correction, a superior viewing experience and highly satisfied patients – as with the digital phoropter VISUPHOR® 500 and the acuity chart systems VISUSCREEN®100 and VISUSCREEN 500 from ZEISS. Combining comfort and convenience with speed and efficiency, they offer refraction specialists a sophisticated, modular solution.

Your benefits at a glance

> Subjective refraction systems from ZEISS are modular and expandable to suit your needs.
> Acuity charts and phoropter allow easy, intuitive operation via touch-screen interface
> Preconfigured workflows let you get right to work, saving you time preparing refraction tests
RM 37,783.00  Excl. GST

Silent operation

Fast and smooth lens exchanges support efficient vision optimization and final prescription in real time.

Simple touch screen control

The clearly structured user interface makes working with the ZEISS VISUSCREEN/VISUPHOR very easy. With the fully integrated GUI, both the phoropter and acuity screen can be controlled as one subjective refraction unit. Even single-handedly, with the optional, medical grade panel PC or an iPad.

Smart workflow

The ZEISS VISUPHOR 500 enables preconfigured workflows. Thereby, settings for each test are optimally adjusted, fully automatically, making standard refraction tests simple and fast. Settings and workflows can also be individually configured in the freestyle mode.

Choice of acuity chart systems

The ZEISS VISUPHOR 500 digital phoropter is an accessory for the ZEISS VISUSCREEN 100/500 LCD acuity chart system. It is available either with red/ green separation or with the renowned Polatest® technology from ZEISS. The acuity chart system features over 20 tests for accurately assessing monocular and binocular vision, and can also be operated as stand-alone device if you prefer to work with a trial lens set or a manual phoropter.

iPad and iPad Air are trademarks of Apple Inc., registered in the U.S. and other countries. iOS is a trademark of Cisco, registered in the U.S. and other countries.

Technical Data
  Technical data
Spherical lenses –19.00 to +16.75 D (increments: 0.12 / 0.25 D)
Cylinder lenses 0 to ± 8.75 D
Cylinder axis 0 to 180° (increments: 1° steps)
PD 48 to 80 mm
Rotary prism 0 to 20 ∆
Retinoscopy +1.5 D, +2.0 D
Pin hole lens 2 mm
Maddox rod Right eye: red, horizontal / left eye: red, vertical
Red/green filter Right eye: red / left eye: green
Polarizing filter Right eye: 135°, 45° / left eye: 45°, 135°
Split prism Right eye: 6 ∆ BU
Left eye: 10 ∆ BI (up to 5 ∆ complement)
Line voltage 100 – 120 / 200 – 240 V AC
± 10%, 50…60 Hz
Power consumption 145 VA
Dimensions (W x H x D) 361 x 280 x 108 mm
Weight 5 kg
Interfaces 2 x RS232 / Bluetooth
System requirements iPad 3, 4 or Air with iOS 7 or later
Notice: iPad and iPad Air are trademarks of Apple Inc., registered in the U.S. and other countries. iOS is a trademark of Cisco, registered in the U.S. and other countries.
Standard Delivery Package
The standard delivery package for the ZEISS VISUPHOR 500 includes:
1 Bluetooth adapter
1 power cable
1 junction box
1 near sight chart
spare headrest
