ZEISS VISUREF 100 - Autorefractor/Keratometer
The VISUREF® 100 from ZEISS is a straightforward, easy-to-use diagnostic instrument that provides highly accurate and reliable data for your daily practice routines.
Your benefits at a glance
> Convenience in measurement and handling
> Transparent information and clear visibility for data analysis
> Patient comfort through ergonomic design
Tiltable, 6.4 inch TFT display
Diagnostic information is clearly displayed in excellent contrast and resolution on the adjustable TFT monitor.
Featuring a tilt range of 20°, it can be adjusted for individual user viewing preferences.

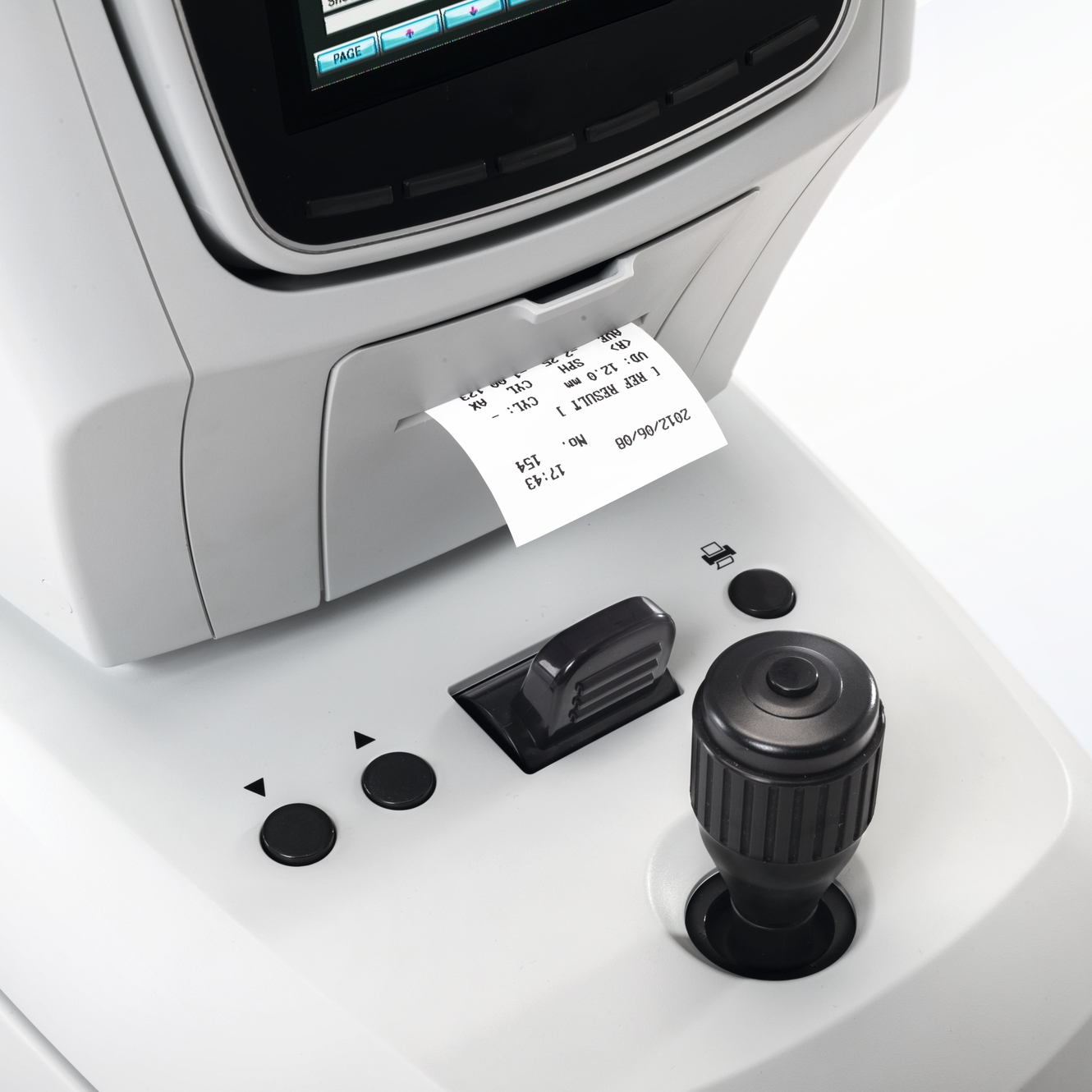

Quick release brake
Within easy reach of the joystick, the quick release brake can be used to disable the XY movement of the instrument base.
It helps you to comfortably position the instrument and increase the ease of use when the patient is seated.
Motorized chinrestConveniently operated by two buttons next to the joystick, the motorized chinrest lets you quickly and comfortably position the patient.
- Technical Data
ZEISS VISUREF 100 Refraction Sphere (SPH) -25 D to + 22 D in 0.12 / 0.25 D increments Cylinder (CYL) 0 D to ± 10 D in 0.12 / 0.25 D increments Axis (AX) 0° to 180° in 1° increments Vertex distance (VD) 0.0, 10.0, 12.0, 13.5, 15.0 mm Pupil distance (PD) 10 - 85 mm Minimum pupil diameter 2 mm Keratometry Corneal curvature 5.0 - 10.2 mm in 0.01 mm increments Corneal refraction 33 D to 67.5 D in 0.12 / 0.25 D increments Corneal astigmatism 0 D to -15 D in 0.12 / 0.25 D increments Axis 0° to 180° in 1° increments Corneal diameter 2.0 - 12.0 mm in 0.1 mm increments Chinrest movement 65 mm motorized Printer Thermal, integrated Connectivity 1 x RS232, 1 x USB, 1 x ext. video Power supply AC 100 V - 240 V, 50/60 Hz Dimensions, weight 275 mm x 525 mm x 450 mm (WDH), 18 kg
- Standard Delivery Package
The standard delivery package for the ZEISS VISUREF 100 includes:
1 VISUREF 100 1 model eye 1 roll of thermal paper 1 dust cover
- Further Information
Lernen Sie den VISUREF 100 näher kennen:
